SIMOPRIME WORLD- 17.5 KV

Description

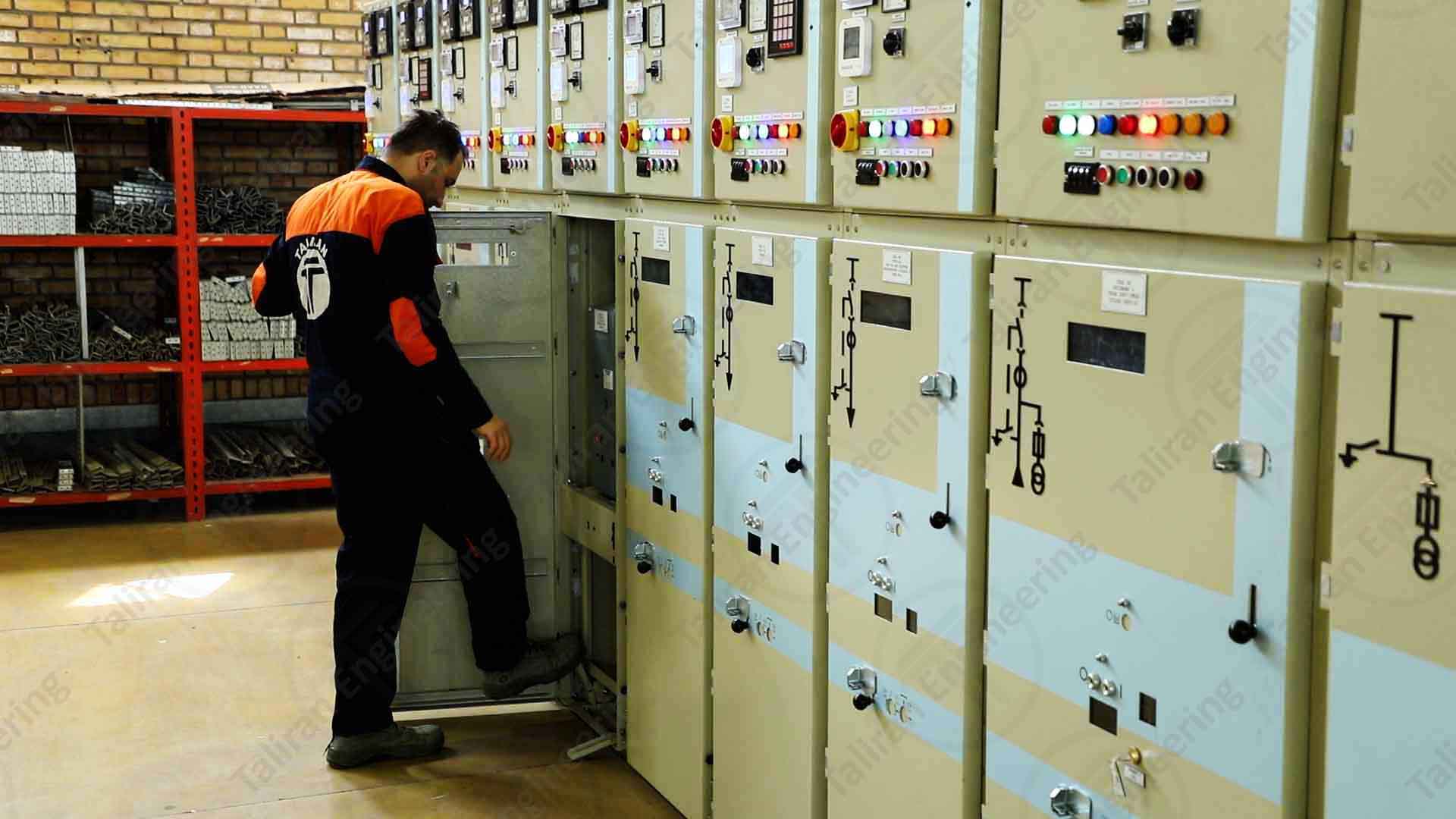

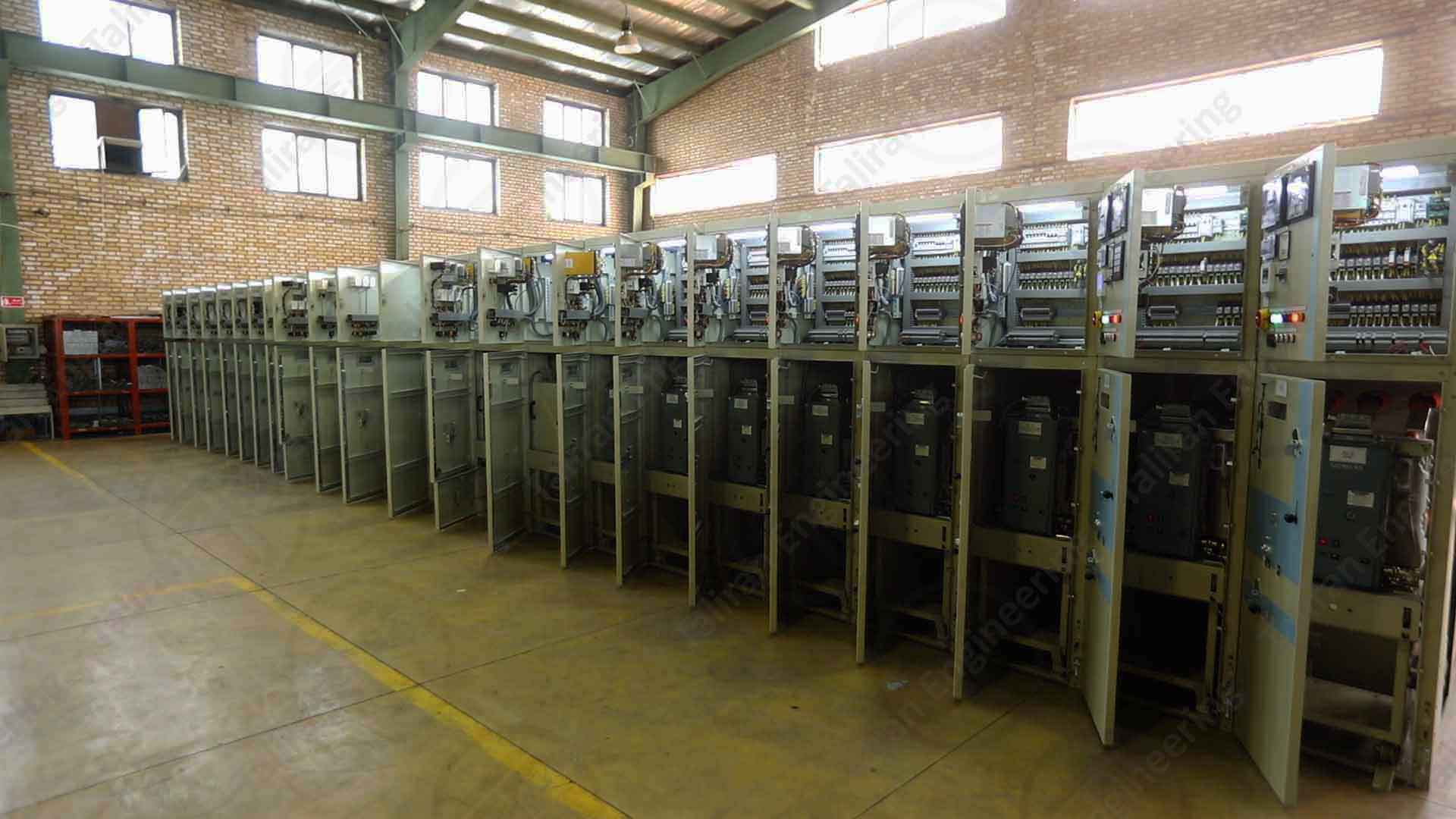

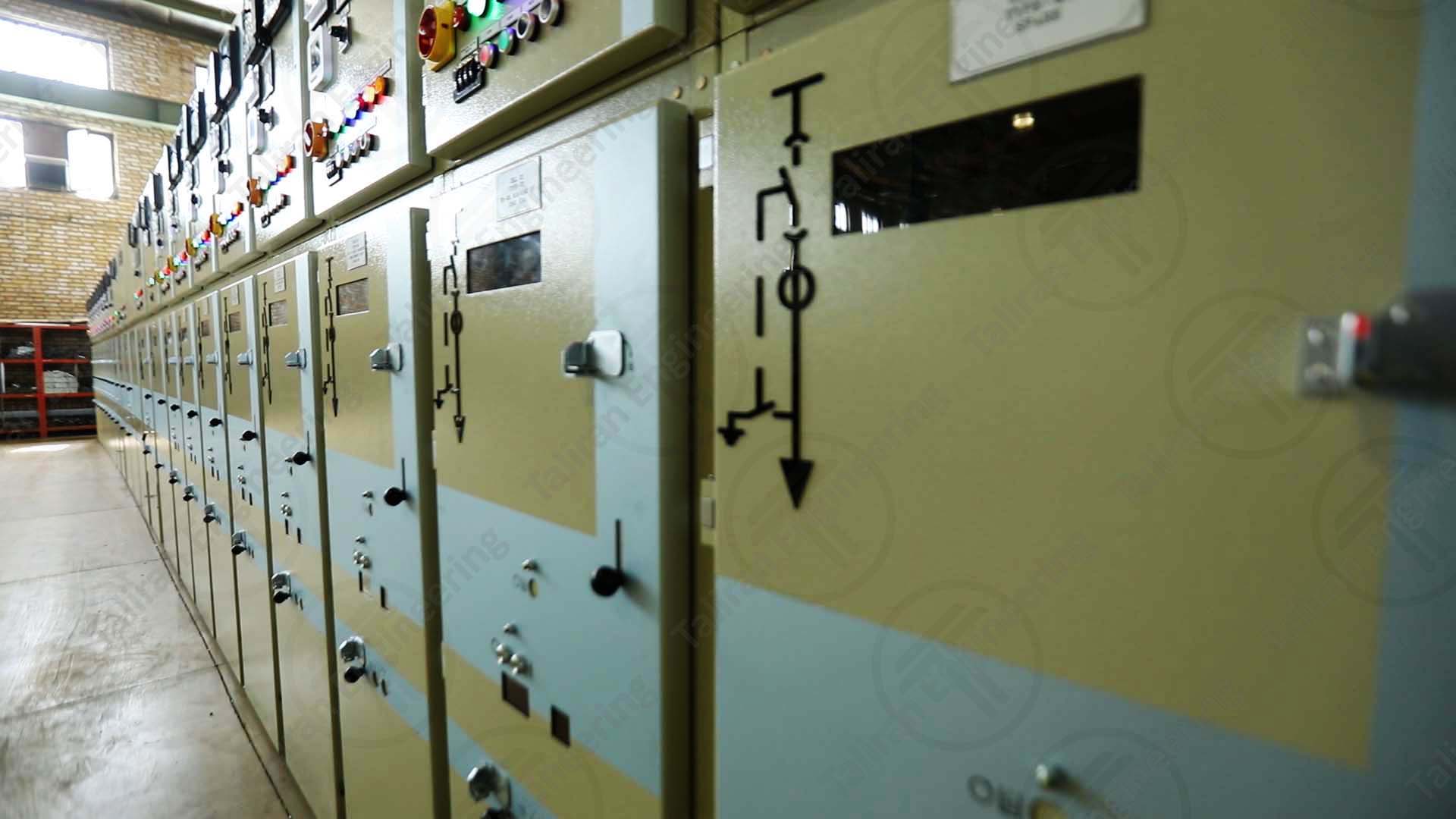

SIMOPRIME WORLD is made as a withdrawable and metal clad type switchgear, and type tested acc. to IEC 62271-200. Metal clad type, unlike the enclosure type which equipment are not separated each other in it, supplies independent compartments for live parts. This lead to more safety for equipment and people deal with switchgear.

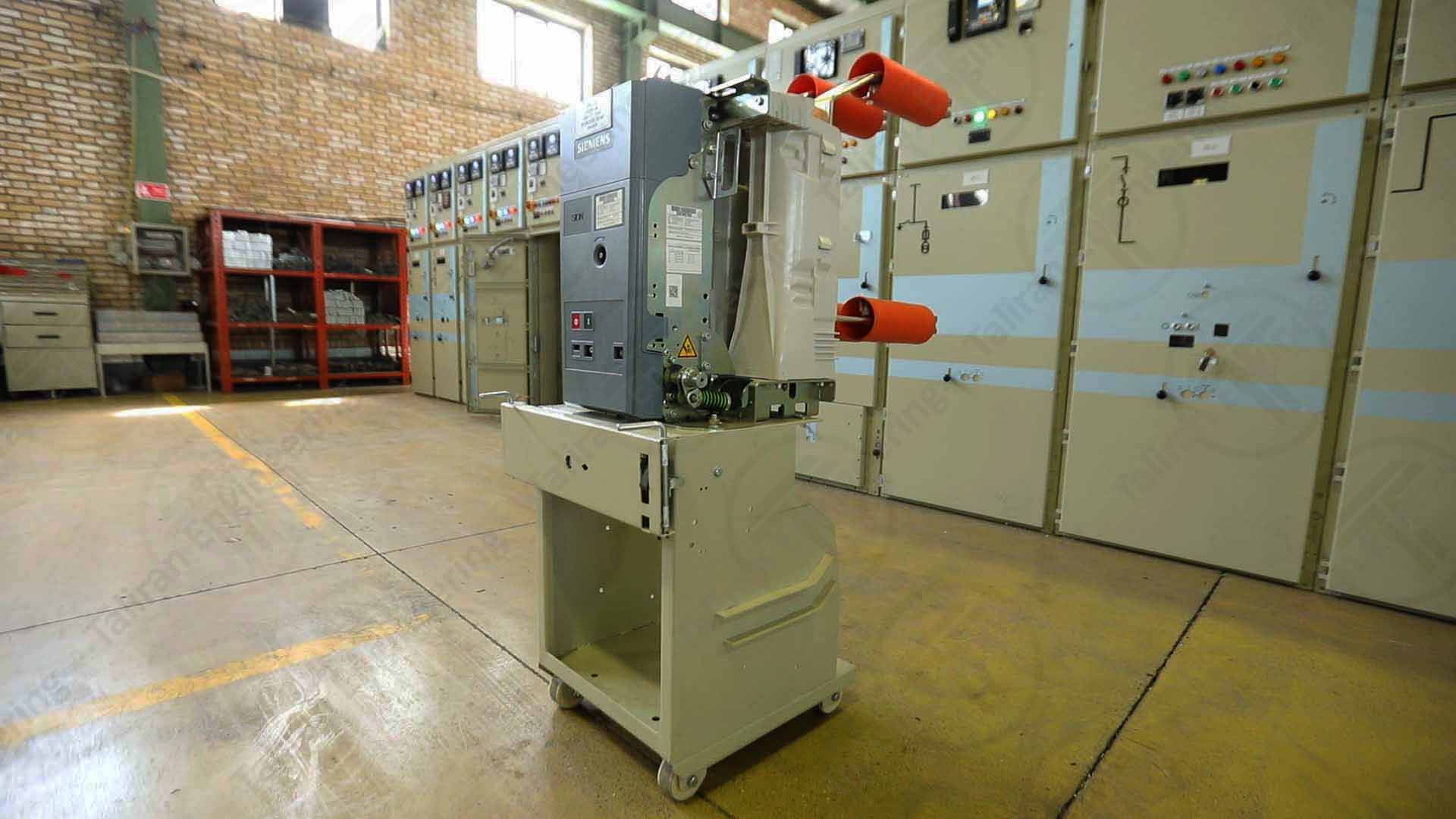

Vacuum circuit breaker or contactor can be used in SIMOPRIME WORLD switchgear. It is suitable for installations up to 17.5 KA, especially for MV electro motors and electro pumps with usual rated voltages 3.6, 7.2, and 12 KV.

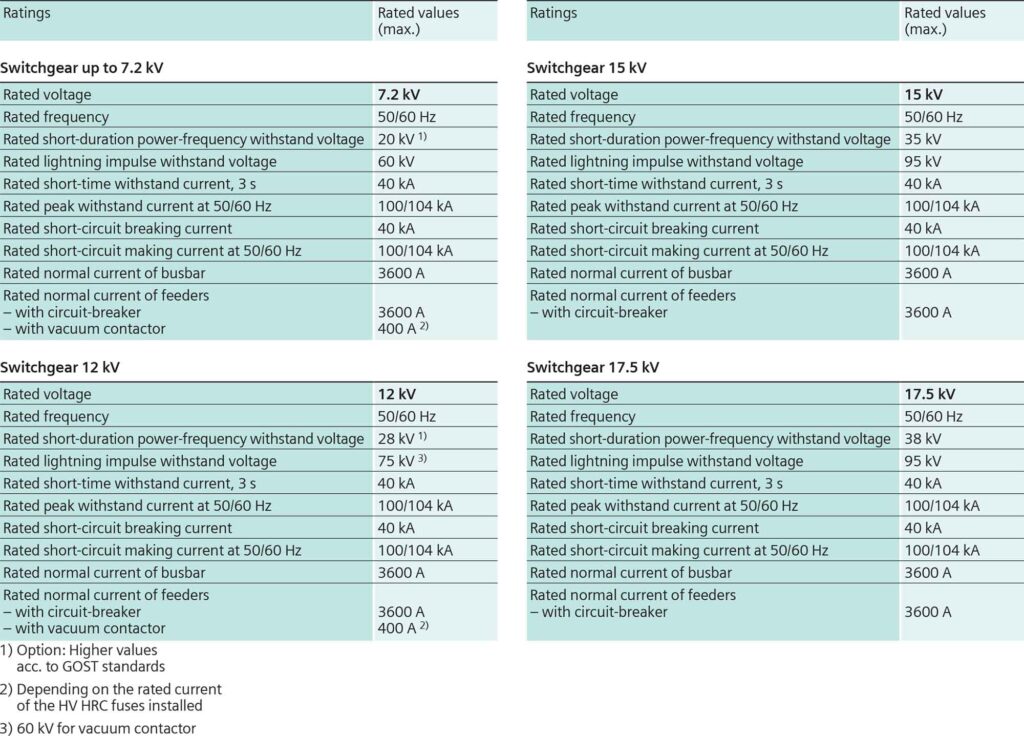

The SIMOPRIME WORLD rated current is 3600 A with circuit breaker and 400 A with contactor. Its rated short time withstand current is 40 KA 3s, and rated short time breaking current 40 KA.
