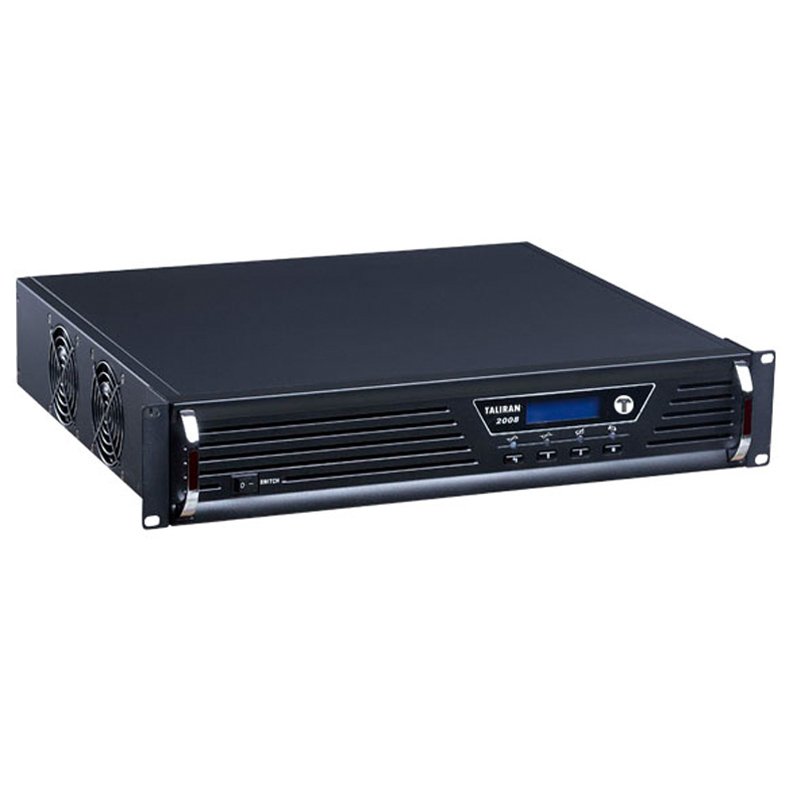

Description

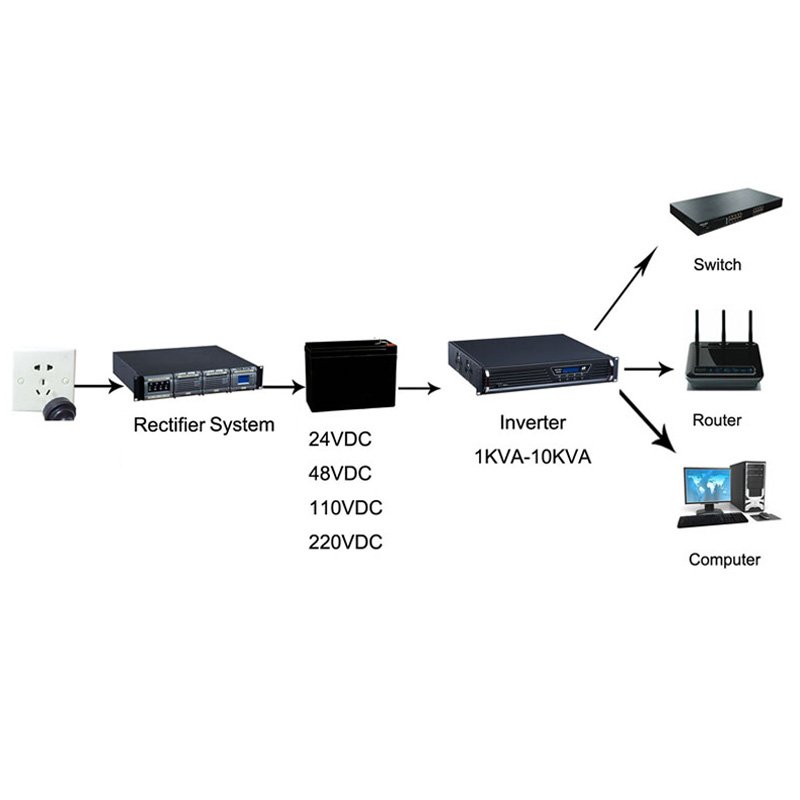

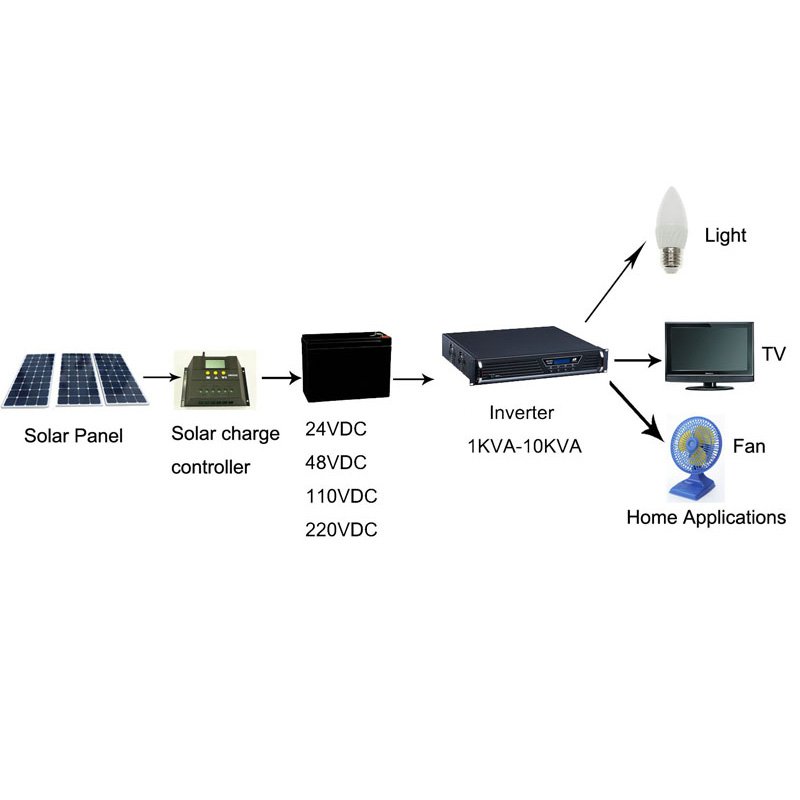

The most common application of direct to alternating current converter is in UPS (Uninterrupted Power Supply), which converts the battery power to 230 V or any other desired alternating voltage when there is a lack of city electricity. The conversion process here can also be done using linear or switch mode technology. In linear technology, DC voltage is first converted to AC voltage, then it is returned to alternating voltage with a certain range using a transformer and filter. In the switch mode method, the same work is done at high frequencies and using high frequency transformers.
Specifications of inverters:
- DC input: 24, 48, 110, and 220 volts
- AC output: 230 V or according to the order and requirement
- Output power: usually up to 30 kVA; Greater powers by order
| Output power | 1KVA | 2KVA | 3KVA | 4KVA | 5KVA | 6KVA | 7KVA | 8KVA | 9KVA | 10KVA | |
| Run mode | Pure inverter/online interactive | ||||||||||
| DC Input | Rated input voltage | 110V/220V | |||||||||
| Rated input current(A) | 10.6/ 5.3 |
21.3/ 10.5 |
32/ 15.8 |
42.6/
21.1 |
53.2/
26.3 |
63.8/ 31.6 |
74.5/ 36.8 |
81.5/ 42.1 |
95.7/
47.4 |
126.4/
52.6 |
|
| Turn-off voltage range | 110Vdc(92V-132V) 220Vdc(170V-275V) | ||||||||||
| Turn-on voltage range | 110Vdc(101V-127V) 220Vdc(207V-260V) | ||||||||||
| Anti-noise current irrigation | ≤10% | ||||||||||
| AC Input | Bypass voltage | 145V-95V(±10V) | |||||||||
| Rated input current（A） | 10.5 | 21.1 | 31.6 | 42.1 | 52.6 | 63.2 | 73.7 | 84.2 | 94.7 | 105.3 | |
| Bypass transfer time （ms） |
≤5ms | ||||||||||
| AC output | Power factor | 0.8 | 0.7 | ||||||||
| Rated capacity(VA) | 1K | 2K | 3K | 4K | 5K | 6K | 7K | 8K | 9K | 10K | |
| Rated output power | 800W | 1600W | 2400W | 3200W | 3500W | 4200W | 4900W | 5600W | 6300W | 7000W | |
| Rated output voltage and frequency |
110/220Vac, 50/60Hz | ||||||||||
| Wave shape | Pure sine wave | ||||||||||
| Rated output current | 7.2A | 14.5A | 21.8A | 29.1A | 31.8A | 38.2A | 44.5A | 50.9 A | 57.3 A | 63.6 A | |
| Output voltage accuracy |
110/220 V±1% | ||||||||||
| Output frequency accuracy |
50Hz±0.1% | ||||||||||
| Waveform distortion | ≤3% | ||||||||||
| Dynamic Response Time |
0.05 | ||||||||||
| Overload | 120%, 30s | ||||||||||
| Inverter efficiency （80% Resistive load） |
≥85% | ||||||||||
| Work condition | Dielectric Strength | input & output 1500Vac, 1min | |||||||||
| Noise（1m） | ≤40dB | ||||||||||
| Ambient temperature | -25℃~+50℃ | ||||||||||
| Humidity | 0~95%, Non-condensing | ||||||||||
| Altitude(m) | ≤1500 | ||||||||||
| Cooling | Forced air | ||||||||||
| Interface | HMI | LCD+LED display | |||||||||
| Communication interface | RS232/RS485/RJ45(Choose one) | ||||||||||
| dry contact load output | 2ch /3ch output ( Choose one) | ||||||||||
| Protection | Input under/over voltage; output overload, short circuit protection; AC input high and low voltage protection |
||||||||||
| Output wiring | Sockets and terminals | Terminal Blocks | |||||||||
