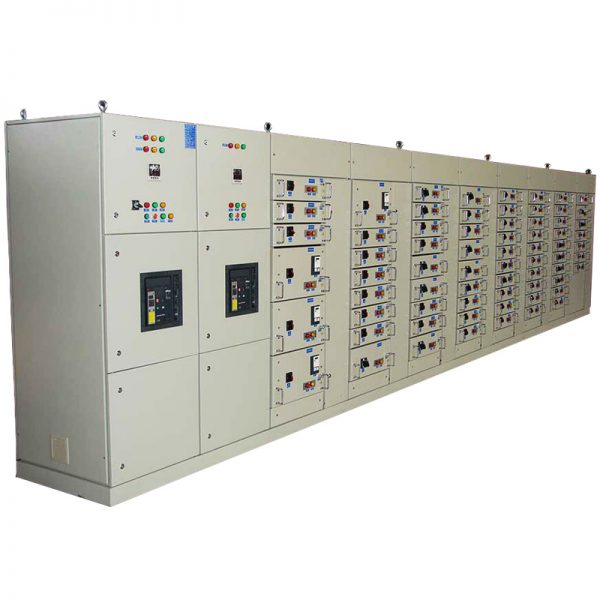

TALIRAN Type Tested Withdrawable LV Switchgear
Besides manufacturing withdrawable LV Switchgears by Siemens technology and license, TALIRAN has also developed and type tested the localized withdrawable LV Switchgears. These switchgears are being manufactured according to IEC, so their quality is fine and the prices are lower than under licensed types at the same time.
As every LV withdrawable switchgears, these are generally used in factories and utility networks with important and more similar loads. Due to flexibility and inherent facilities of these panels, using them in vital and important process’ guarantees the uninterrupted exploitation of production line and easy maintenance.
| Withdrawable Low Voltage Switchgear | |
| Panel Name | |
| Panel Type | TLF 11 |
| Electrical characteristics | |
| Rated Voltage (Ue) | Up 690V |
| Rated Insulation (U¡) | 1000V |
| Dlelectric Test Voltage (Ud) | 3kV |
| Rated Impulse withstand voltage (uimp) | 12 kV |
| Rated Frequency (Hz) | 40 ~ 60 Hz |
| Rated Current for Main Busbar (A) | 6300 A |
| Rated Current for Outgoing Feeder (A) | Draw – Out Modules Up to 630 A Withdrawable Circuit Breaker Up to 4000A |
| Rated short-time withstand current (Icw) kA/Sec | 100 / 1 |
| Rated peak withstand current (I peak) | Up To 275 kA |
| Control Supply | 24 . 48 . 110V DC 110 . 230V AC |
| Standard Used at Electrical Characteristics | IEC-61439-1 , IEC-61439-2 |
| Mechanical characteristics | |
| Max. height (mm) | 2200 mm |
| Max. Width (mm) | 1200 mm |
| Max. Depth (mm) | 1000 mm |
| Degree of Protection (IEC) | IEC-60539 |
| Painting | Epoxy Powder Coating |
| Sheet Steel Thikness (mm) | 1 ~ 2٫5 for Different Parts |
| RAL | 7032 – 7035 Other Colors as Request |
| Cable Entry | Bottom , Front or Rear |
| Access | Rear and Front |
| IP | 54 – 65 |
| Environmental | |
| Ambient Temperature Min / Max (°C) | -5 / +40 |
| Installation Altitude Max. m | 1000 (upper altitudes need redesign) |
| Humidity 24-Hour Mean Max. | 95% |
