Withdrawable MV Switchgear
Withdrawable Medium Voltage Switchgear
Description

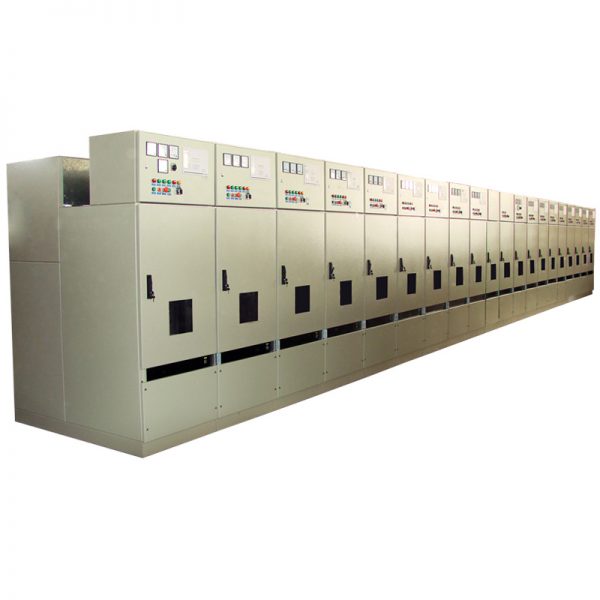

TALIRAN Type Tested Withdrawable MV Switchgear
In addition to manufacturing withdrawable MV Switchgears by Siemens technology and license, TALIRAN has also developed and type tested the localized withdrawable MV Switchgears. These switchgears are being manufactured according to IEC, so their quality is fine and the prices are lower than under licensed types at the same time.
These withdrawable MV switchgears are generally used in factories and in utility networks. The rated voltage of these switchgears are 3.6, 7.2, 12. 24, and 36 KV.
| Withdrawable Medium Voltage Switchgear | |||||
| Panel Name | |||||
| Panel Type | TMW01 | TMW11 | TMW21 | TMW31 | TMW41 |
| Electrical characteristics | |||||
| Rated Voltage | 3٫6 kV | 7٫2 kV | 12 kV | 24 kV | 36 kV |
| Rated 1 Minute Power Frequency Withstand Voltage | 12 kV | 20 kV | 28 kV | 50 kV | 70 kV |
| Rated Impulse Withstand Voltage | 45 kV | 60 kV | 75 kV | 125 kV | 170 kV |
| Rated Current | up to 3600 A | up to 2500 A | |||
| Rated Short Time Withstand Current (1sec) | up to 40 kA | up to 31.5 kA | |||
| Rated Bus Bar Current | up to 3600 A | up to 2500 A | |||
| Control Supply | 24 . 48 . 110V DC 110 . 230V AC |
||||
| Standard Used at Electrical Characteristics | IEC-62271-200 | ||||
| Mechanical characteristics | |||||
| Max. height (mm) | 2300 | 2300 | 2300 | 2300 | 2500 |
| Max. Width (mm) | 820 | 820 | 820 | عرض 900 برای کلیدهای پارس سوییچ عرض 750 برای کلیدهای ABB |
1350 |
| Max. Depth (mm) | 1600 | 1600 | 1600 | 1750 | 2450 |
| Weight Per Cubicle (app) KG | 400 | 450 | 450 | برای کلیدهای پارس سوییچ 550 کیلو گرم برای کلیدهای 520ABB کیلو گرم |
690 |
| Painting | Epoxy Powder Coating | ||||
| Sheet Steel Thikness (mm) | 2 ~ 2٫5 for Different Parts | ||||
| RAL | 7032 – 7035 Switchgear in different Colors according to demand | ||||
| Cable Entry | Buttom | ||||
| Access | Rear and Front | ||||
| IP | 21 | ||||
| Environmental | |||||
| Ambient Temperature Min / Max (°C) | -5 / +40 | ||||
| Installation Altitude Max. m | 1000 (Higher altitudes need redesign) | ||||
| Humidity 24-Hour Mean Max. | 95%+A7:F27A2:F27A1:F27A1A18:F27 | ||||
