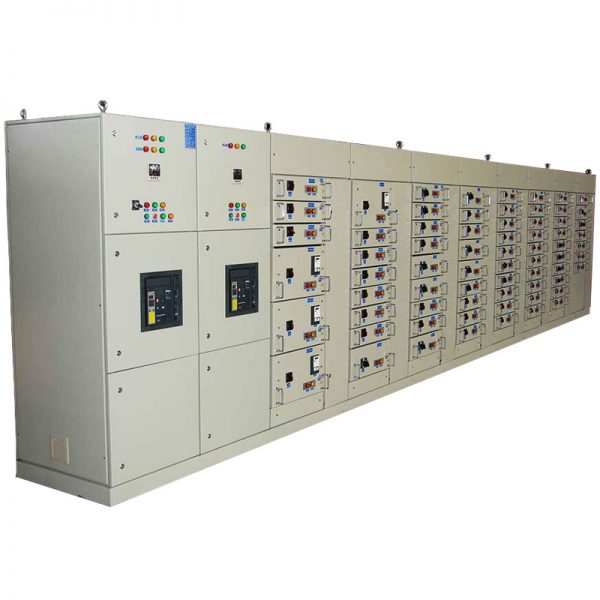

Раздвижная Низковольтные распределительные устройства
Withdrawable Low Voltage Switchgear
Описание
Раздвижные панели, главным образом, в машинном отделении и объектов электросетевого хозяйства и потребитель использовал относительно малый.
— Для получения дополнительной информации посетите Талиран каталоги или связаться с отделом продаж компании.
| Withdrawable Low Voltage Switchgear | |
| Panel Name | |
| Panel Type | TLF 11 |
| Electrical characteristics | |
| Rated Voltage (Ue) | Up 690V |
| Rated Insulation (U¡) | 1000V |
| Dlelectric Test Voltage (Ud) | 3kV |
| Rated Impulse withstand voltage (uimp) | 12 kV |
| Rated Frequency (Hz) | 40 ~ 60 Hz |
| Rated Current for Main Busbar (A) | 6300 A |
| Rated Current for Outgoing Feeder (A) | Draw — Out Modules Up to 630 A Withdrawable Circuit Breaker Up to 4000A |
| Rated short-time withstand current (Icw) kA/Sec | 100 / 1 |
| Rated peak withstand current (I peak) | Up To 275 kA |
| Control Supply | 24 . 48 . 110V DC 110 . 230V AC |
| Standard Used at Electrical Characteristics | IEC-61439-1 , IEC-61439-2 |
| Mechanical characteristics | |
| Max. height (mm) | 2200 mm |
| Max. Width (mm) | 1200 mm |
| Max. Depth (mm) | 1000 mm |
| Degree of Protection (IEC) | IEC-60539 |
| Painting | Epoxy Powder Coating |
| Sheet Steel Thikness (mm) | 1 ~ 2٫5 for Different Parts |
| RAL | 7032 — 7035 Other Colors as Request |
| Cable Entry | Bottom , Front or Rear |
| Access | Rear and Front |
| IP | 54 — 65 |
| Environmental | |
| Ambient Temperature Min / Max (°C) | -5 / +40 |
| Installation Altitude Max. m | 1000 (upper altitudes need redesign) |
| Humidity 24-Hour Mean Max. | 95% |
