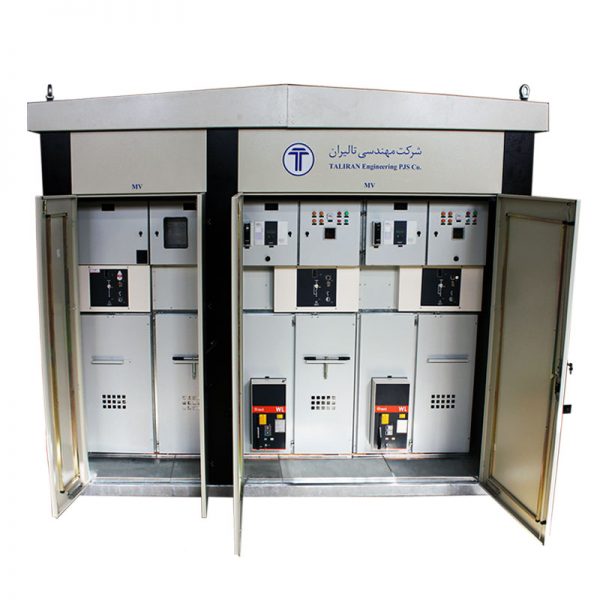

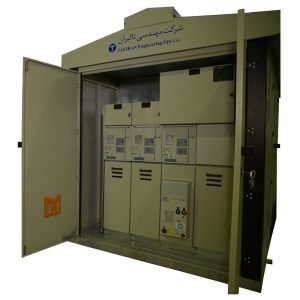

Compact Switchgear 36 KV
Compact Switchgear 36 KV
Açıklama
The compact MV switchgears are used in distribution substations. These types need less installation space.
For more information, please refer to the relevant catalogues in “Downloads” of this site or contact the sales department.
| MV Switchgear | |
| Rated Voltage (kV) | 36 |
| Operational Voltage (kV) | 33 |
| Rated Power Frequency Withstand Voltage (kV) | 75 |
| Rated Lighting Impulse Withstand Voltage (kV) | 195 |
| Rated Frequency ( HZ) | 50 |
| Rated Current (A) | 630 |
| Rated Short Time Current (1sec) – kA | 16 |
| Control Voltage (V AC) | 230 |
| Degree of Protection (IP) | 2X |
| Circuit Breaker | VACUUM |
| Weight (Kg) | ≈700 |
| Standard | 62271-200 |
